SCM Series Centrifugal Type Water Pump
Application
These pumps are capable of handling pure water that is free of abrasive particles and that doesn't chemically affect the internal components of the pump.
They are specifically used for water transportation, watering plants, automatic distribution of water from small and medium-sized surge tanks, as well as other residential and civil uses. They require almost no maintenance, are incredibly reliable, easy to use, and silent.
Working conditions
Max temperature of Fluid up to +60℃
Max Ambient Temperature up to 40℃
Suction lift up to 8m

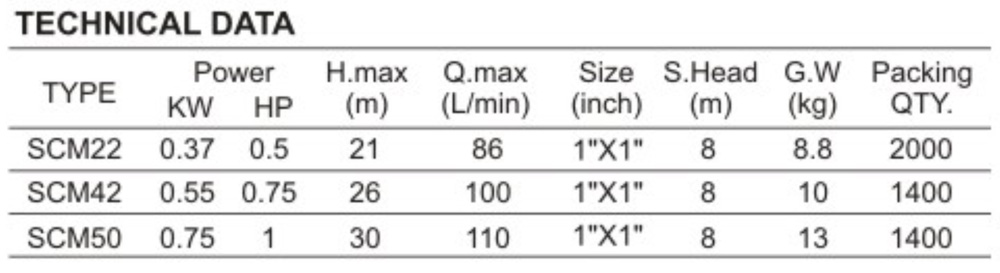

Technical data
Technical Description
1. motor
Real 100% copper coil by machine wiring,new stator,low temperature rise control,good performance
(aluminum winding coil and different stator length as customer’s detail requirement）
2. Impeller
Brass material as normal standard
Stainless steel material for choose to use
Aluminum material for choose to use
Plastic material for choose to use
3. Rotor and shaft
Surface moisture proof ,anti rust treatment
Carbon steel shaft or 304 stainless steel shaft

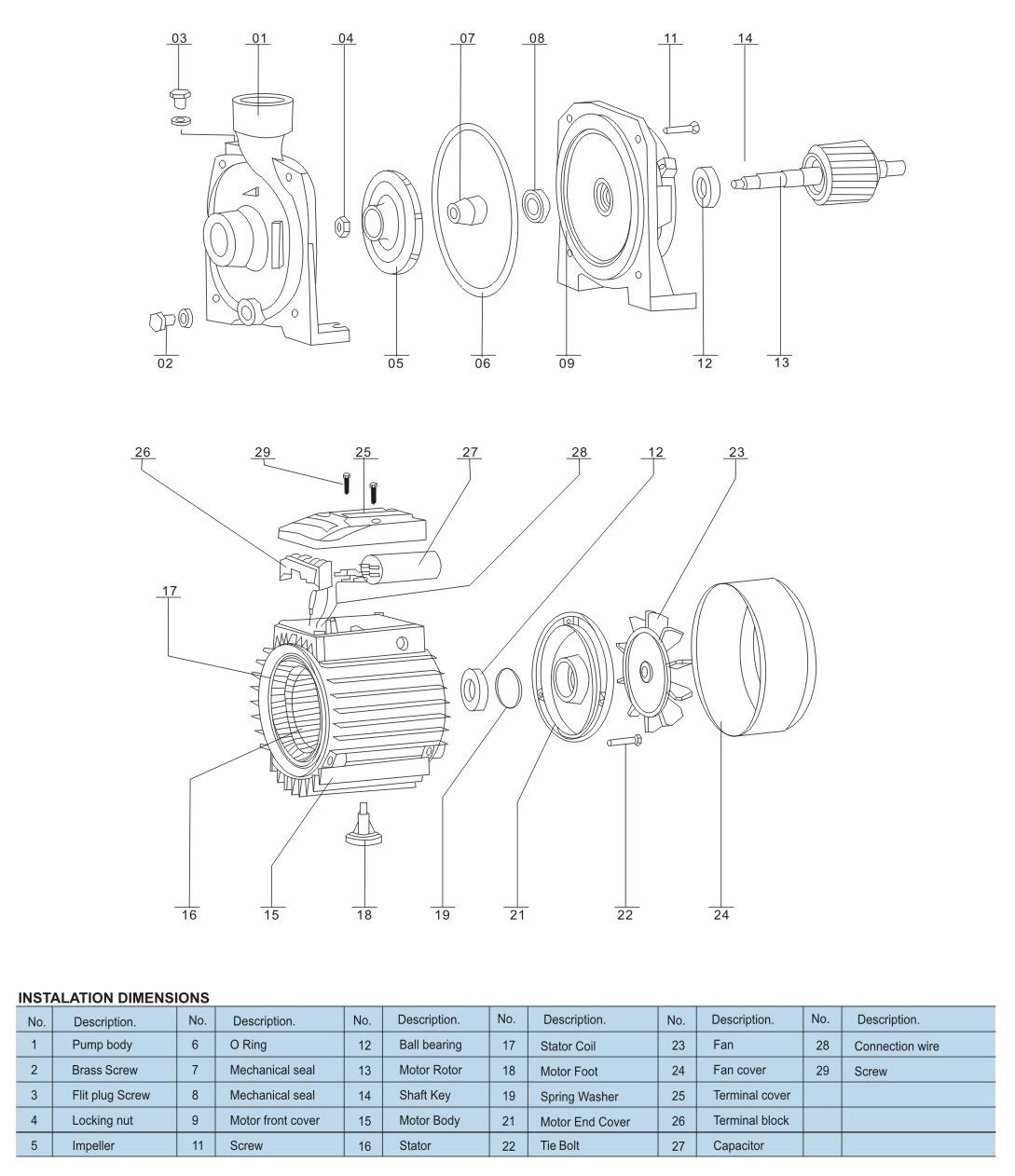

Exploded View
Production line
Quality control
take note of the quality management system ISO 9001.
From design to testing to final approval before acceptance, and from a sample to a batch purchase
Before arriving at our warehouse, the supplies from our suppliers are examined.
to draft an operation manual and a quality control strategy.
A second spot check was done prior to distribution after it was found by test equipment during production.
Installation instruction
It is necessary for the area where the pumps are to be well-ventilated, dry, and with an ambient temperature of no higher than 40°C (Fig.A). To stop vibration, mount the pump securely on a level, firm surface using the proper bolts. The bearings must be in a horizontal position for the pump to function properly.The intake pipe's diameter cannot be less than the intake motor's. Use a pipe with a bigger diameter if the intake height is higher than 4 meters. The deliverypipe's diameter must be selected to match the flow rate and pressure necessary at the takeoff sites. To avoid the development of air locks, the intake pipe must be slightly inclined up toward the intake mouth (Fig.B). Ensure sure the intake pipe is completely submerged and sealed.
Packing
Color design box offer with strong carton material,good protection
Transportation
Priority bulk cargo or full container loading in the ports of Ningbo, Shanghai, and Yiwu.
Samples
Offer free sample for checking the performance data,to send the sample by any way you like, make charge if necessary.discuss to refund fee after receiving formal order
Payment term
T/T term: 20% deposit in advance, 80% balance against copy of bill of lading
L/C term: usually payable at sight
D/P term, 20% deposit in advance, 80% balance of D/P at sight
Credit insurance: 20% down payment first, 80% balance OA 60 days after the insurance company gives us the report
Warranty
We agree 13 months (calculated from the date of bill of lading) as warranty period. According to the relevant vulnerable parts and components, if it is the quality problem caused by manufacturer during the warranty period, Supplier should be responsible for providing or replacing some parts for repairing after the joint identification and confirmation of both parties. The quotation of conventional products does not include any proportion of accessories. During the warranty time, according to the actual feedback, we will negotiate to provide vulnerable parts for maintenance, and some parts may need to be purchased with compensation. Any quality problems can be reported, we will research and negotiation.
