SPA Series Clean Water Submersible Pump

Short Description:


Product Detail

Product Tags

Product Description

SPA series submersible pump

SPA6-28/2-1.1(F)/SPA6-39/3-1.5(F)

SPA6-50/4-1.8(F)

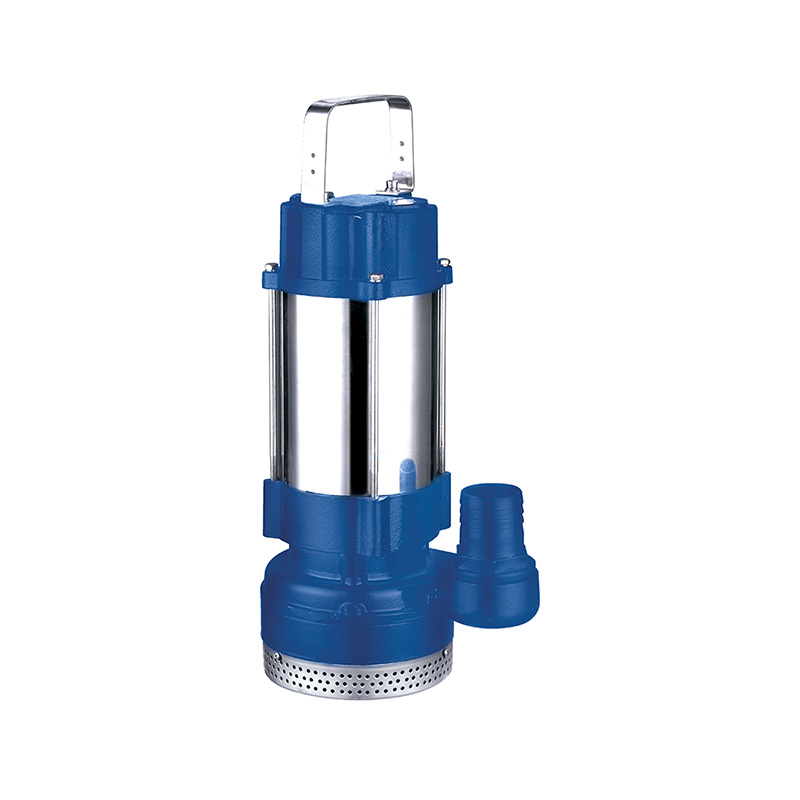

Series-Submersible-Pump1

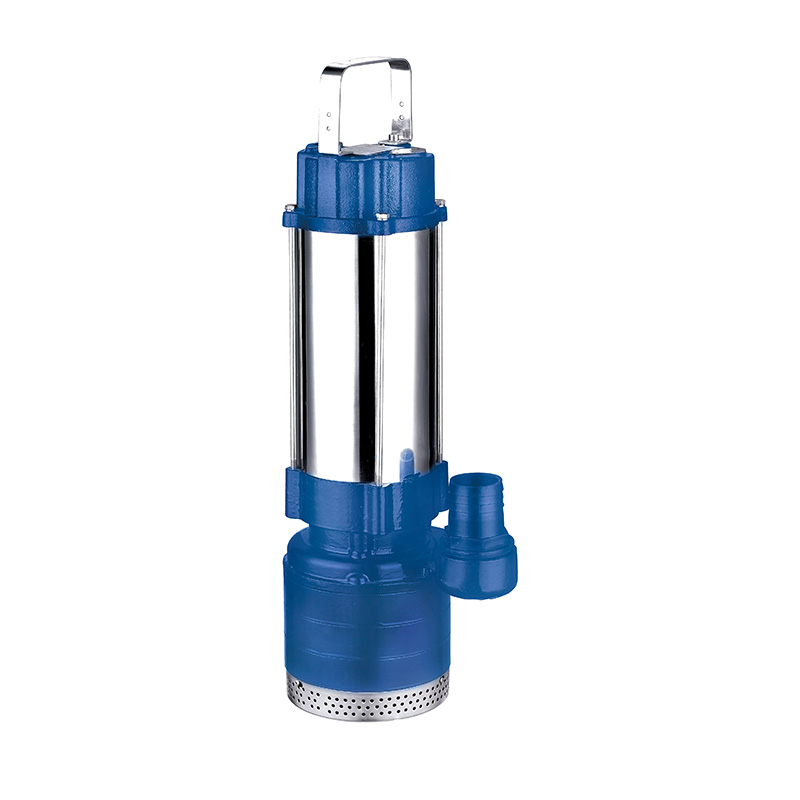

Series-Submersible-Pump2

Introduction

Product: clean water submersible pump
Main Materials:
Top cover : cast iron
Motor case: stainless steel
Pump body: cast iron
Impeller: cast iron

Application

For domestic clean water,can be used for garden watering,oxygenating of cluster box or in supplying and draining water for ordinary places for emptying tanks and reservoirs

Working conditions

1. The depth for the electrical pump below the water is no more than 5m
2. The temperature of the water is no higher of 40℃
3. The PH figure of the water is between 6.5~8.5;
4. The grain diameter of the solids in the water is no bigger than 0.2mm.

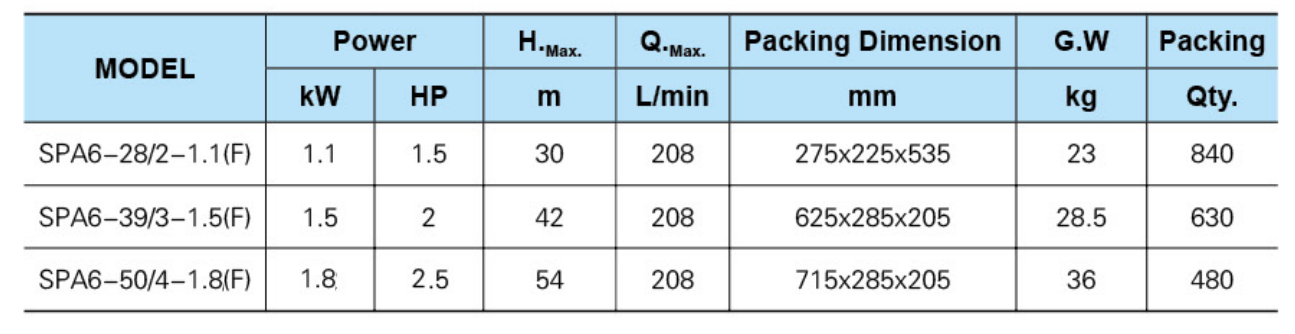

Technical data

TABLE

Function and feature

SPA clean water submersible pump is vastly used for farming, breed aquatics, mine enterprise and construction site.Its features is compact size, light weight, and convenient Use. The float switch can automatically control on and off with the change of the liquor level. The protector in the motor can automatically cut off the power when it overheated or over current, thus guarantee the security and reliability of pump's operation even in the atrocious environment.

Production View

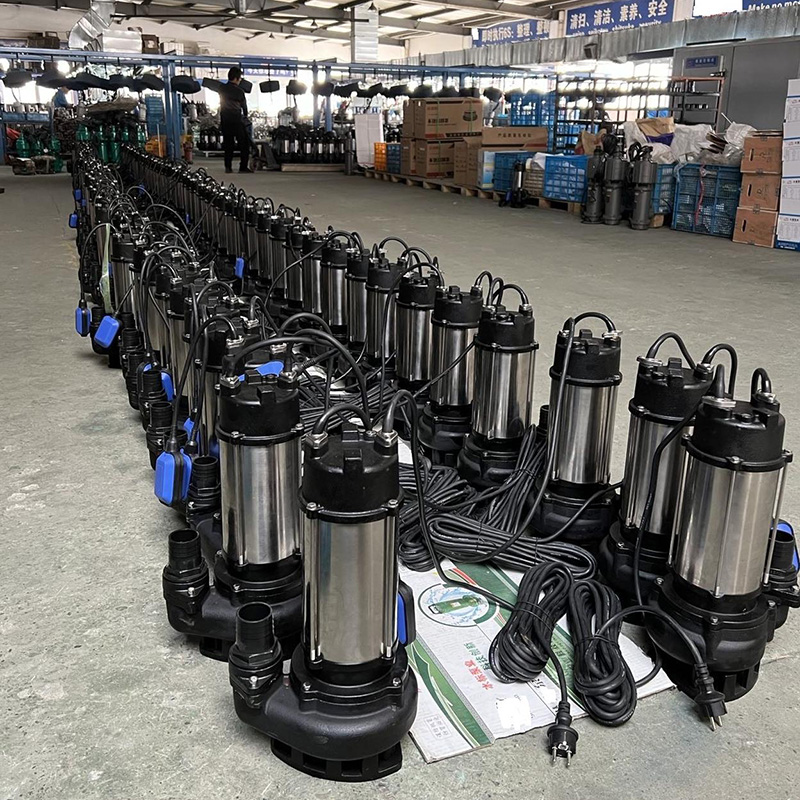

P-D1

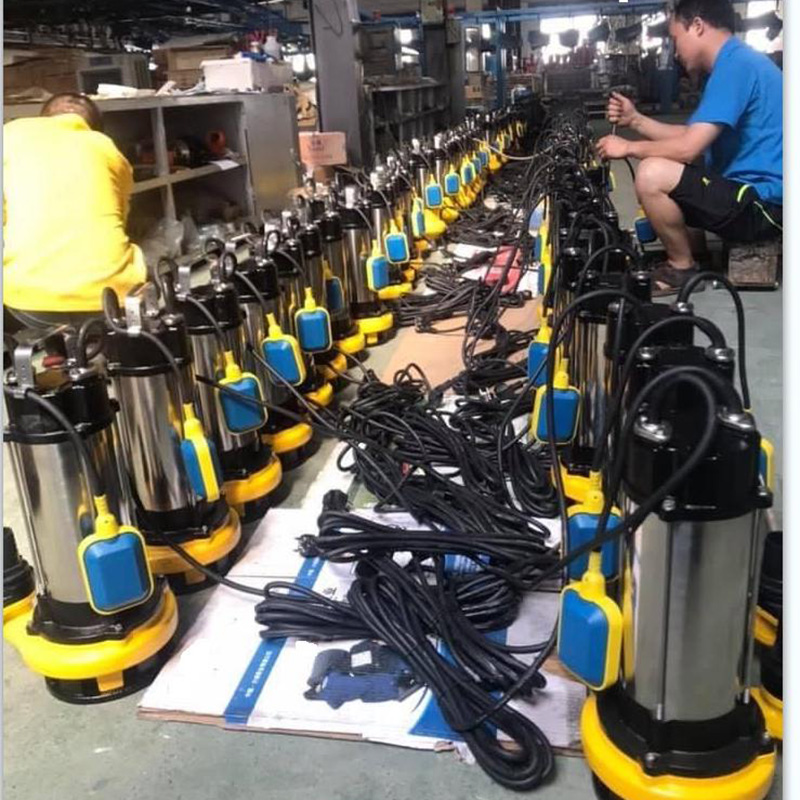

P-D2

Brand

Could do OEM Brand,but if you use our brand, more support and competitive price you could get.

MOQ and sample

Sample or try order is ok.

Customized product

Accept your specific order with your special requirement ,or follow your sample details

Delivery time

Normally it will take about 30 days to finish the order after receiving the advance deposit.

Payment term

T/T term: 20% advance deposit,80%balance against copy of bill of lading
L/C term: normally L/C at sight, longer time for discuss.
D/P term, 20% advance deposit, 80% balance by D/P at sight
Credit insurance: 20% advance deposit,80% balance OA 60days after insurance company give us report, longer time for discuss

Warranty

One to two years from the shipment departure date on B/L.
