Y3 series three phase electric motor

Short Description:

we created the Y3 series of three-phase asynchronous electric motors, which are completely enclosed fan-cooled squirrel-cage AC asynchronous motors with IP55 or IP54 protection degrees and class F insulation. Die-cast aluminum-alloy construction is used to create the motor’s detachable foot. There are various mounting options. Its efficiency class complies with CEMEP EFF2 and has attained the minimal efficiency criteria in China (MEPS). Moreover, it can be enhanced to meet the EFF1 (MEPS2) requirement in Europe and the high efficiency standard in the US. Electric motors from the JL series have a number of benefits, such as high efficiency, energy savings, a powerful starting torque, excellent performance, low noise and vibration, high reliability, ease of operation and maintenance, and mounting dimensions and power rates that adhere to IEC standards.


Product Detail

Product Tags

Designation

Ambient temperature:-15℃≤0≤40℃
Altitude: Altitude should be lower than 1000 meter above sea level. Rated voltage:380V 400V 415V
Rated frequency: 50HZ 60HZ
Connection: Star-connection for 3kw or less whereas delta-connection for 4kw or more. Duty/Rating: Continuous(S1)
Insulation class:F,the temperature rise of the stator winding is examined at 80K(by resistance method).
Protection class: The main body of the motor is IP54, IP55, but the terminal box reaches IP55.
Cooling method: IC411

Application

Reducers, compressors, pumps, assembling lines, packing machines, food processing machinery, etc. are suitable for common sites and short machines that don't need specific maintenance.

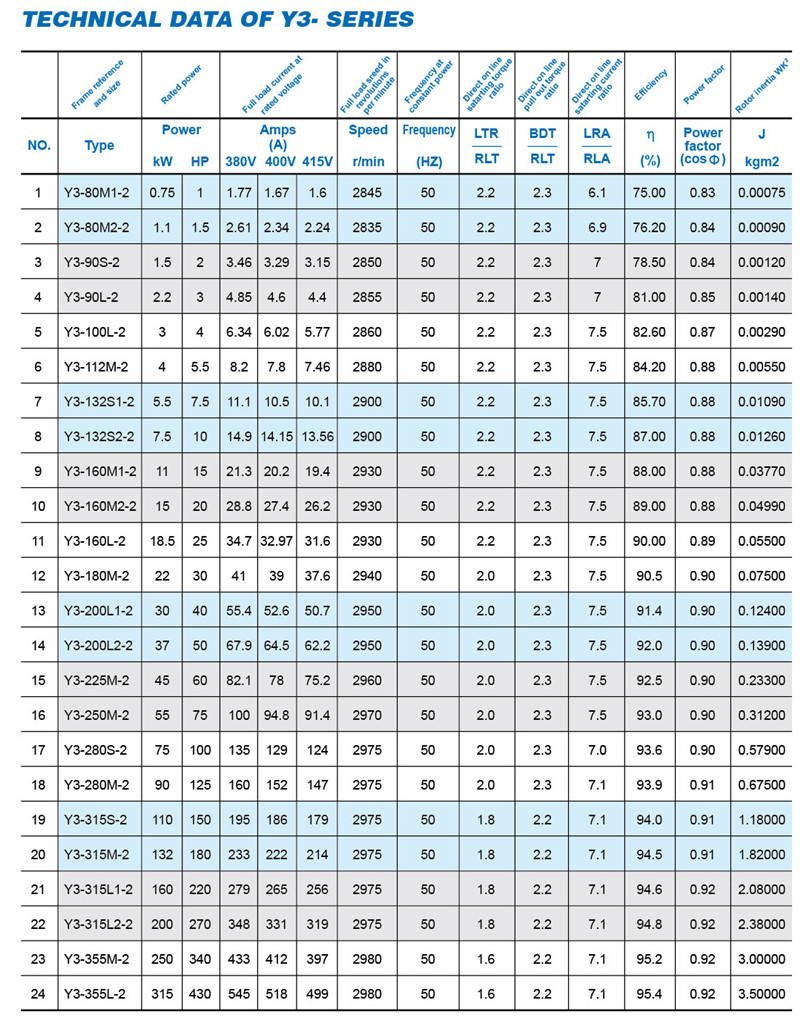

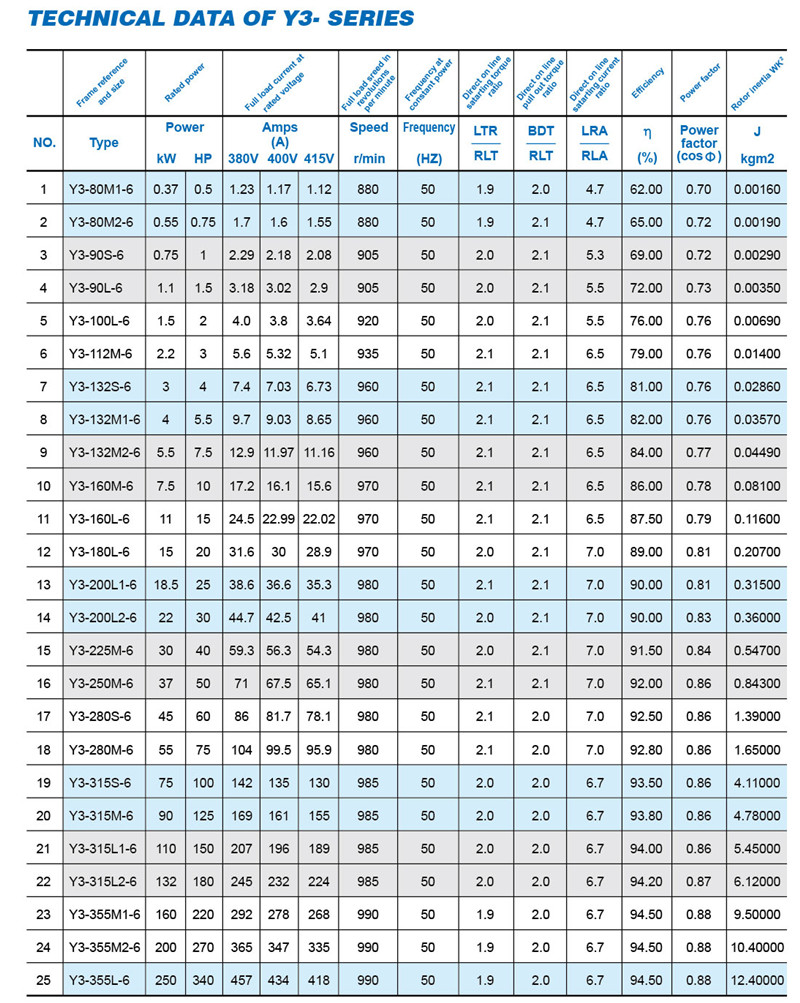

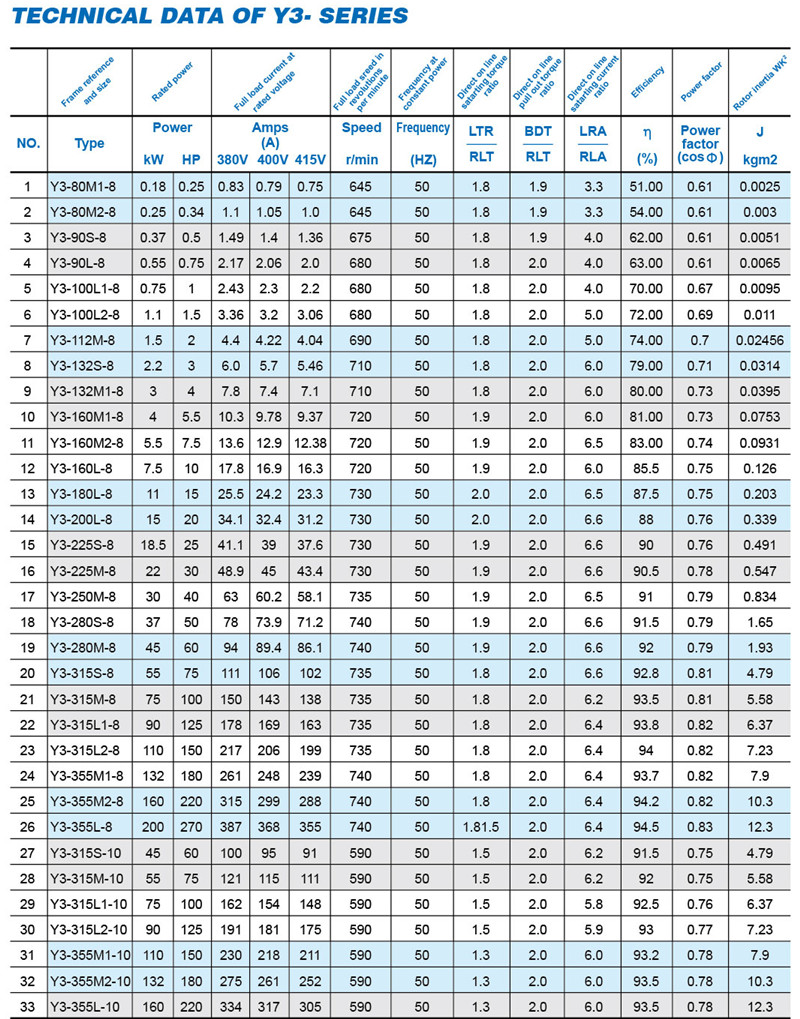

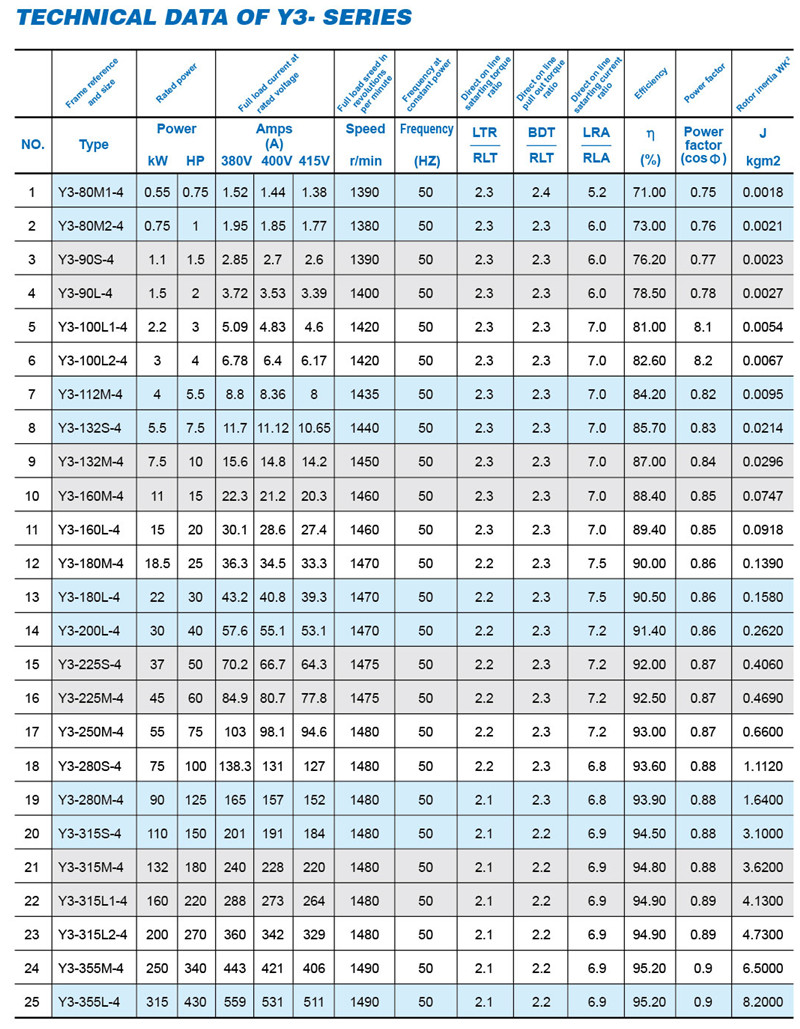

Technical data

chart-1
chart-2
chart-3
chart-4

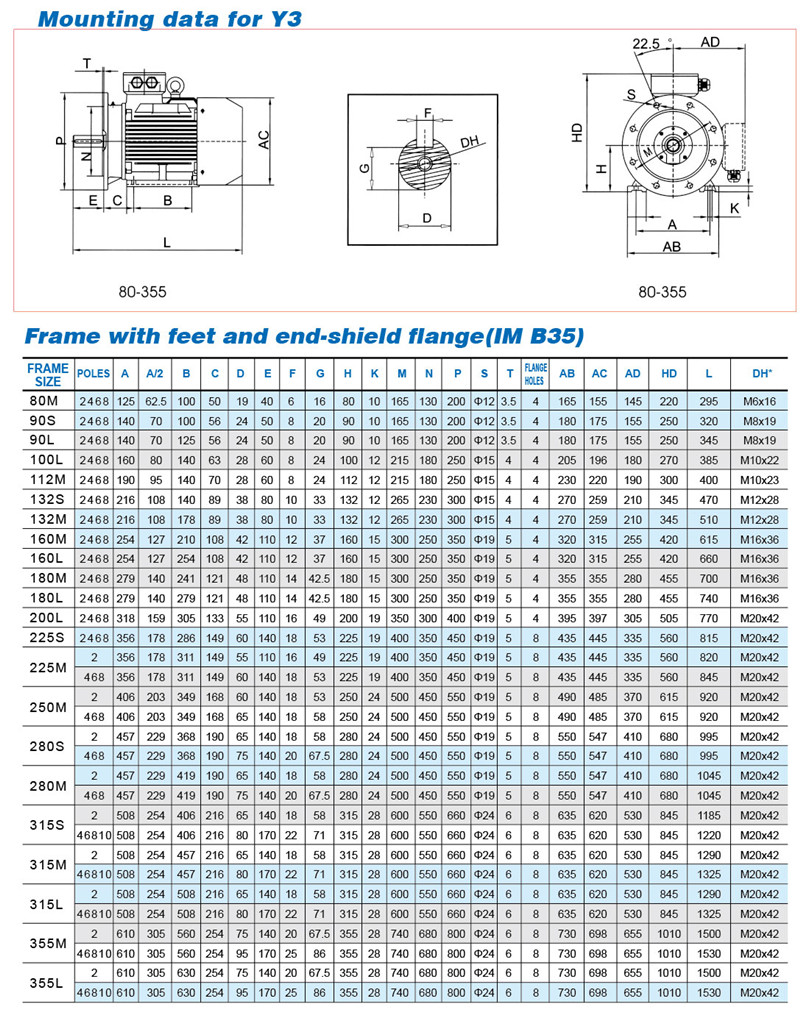

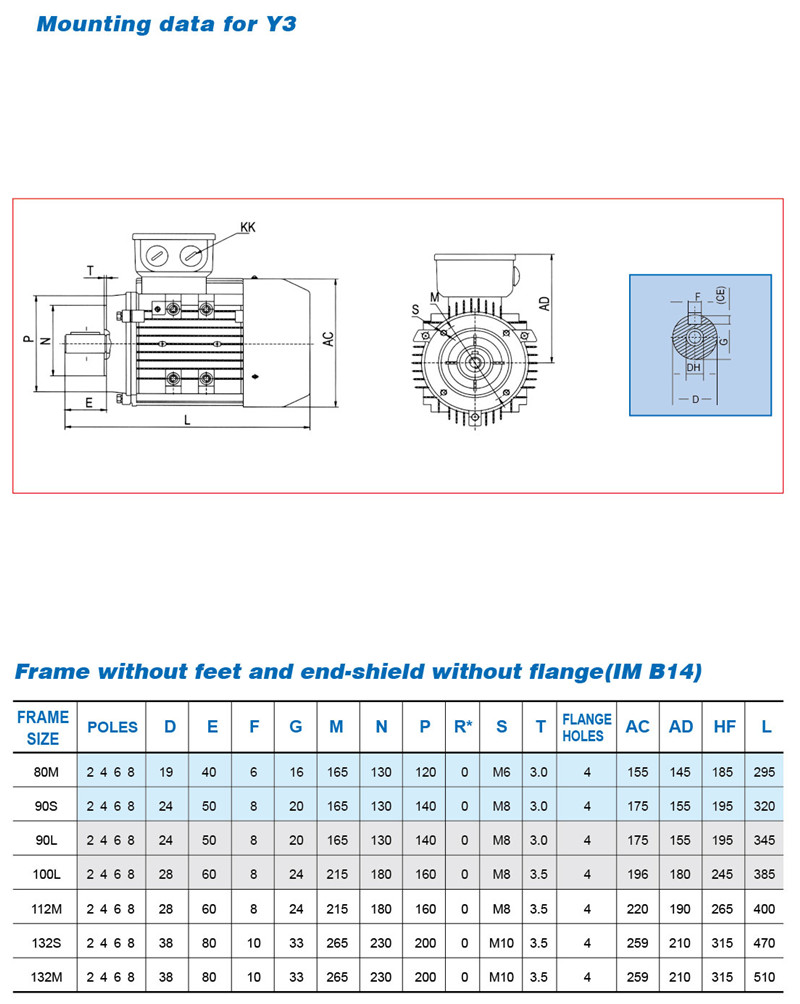

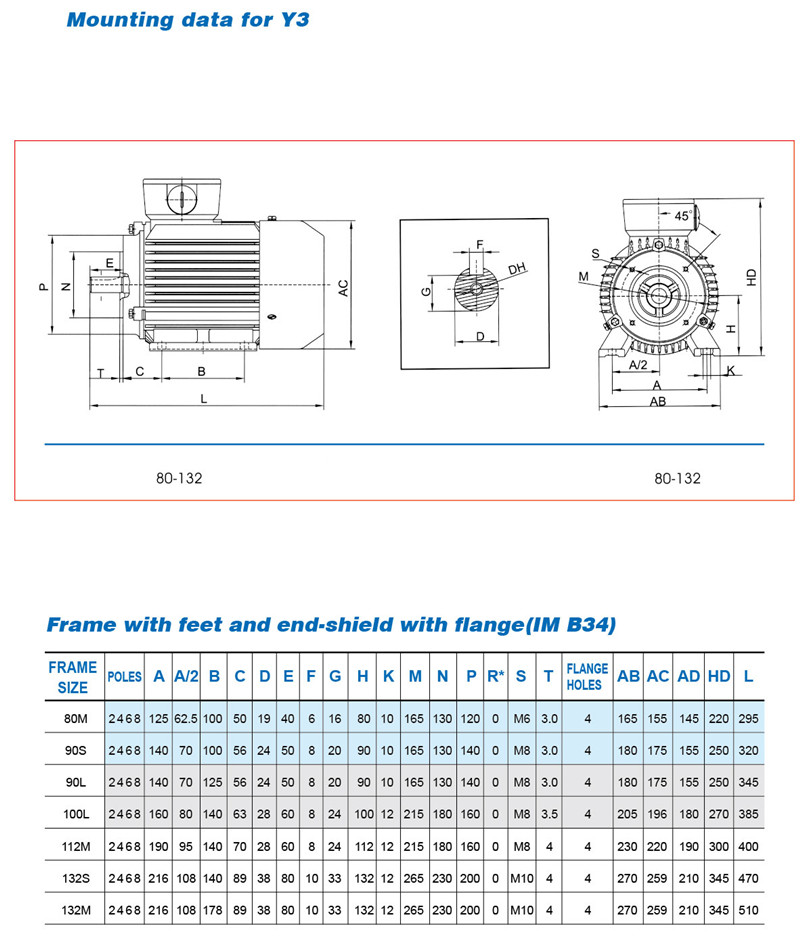

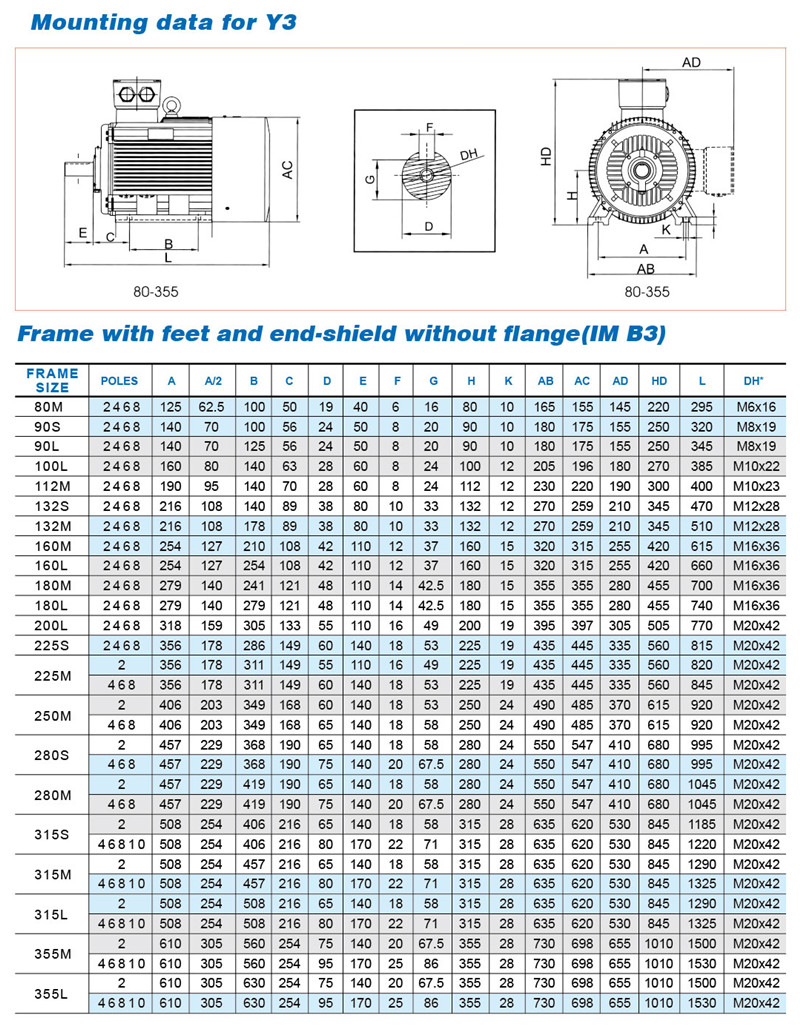

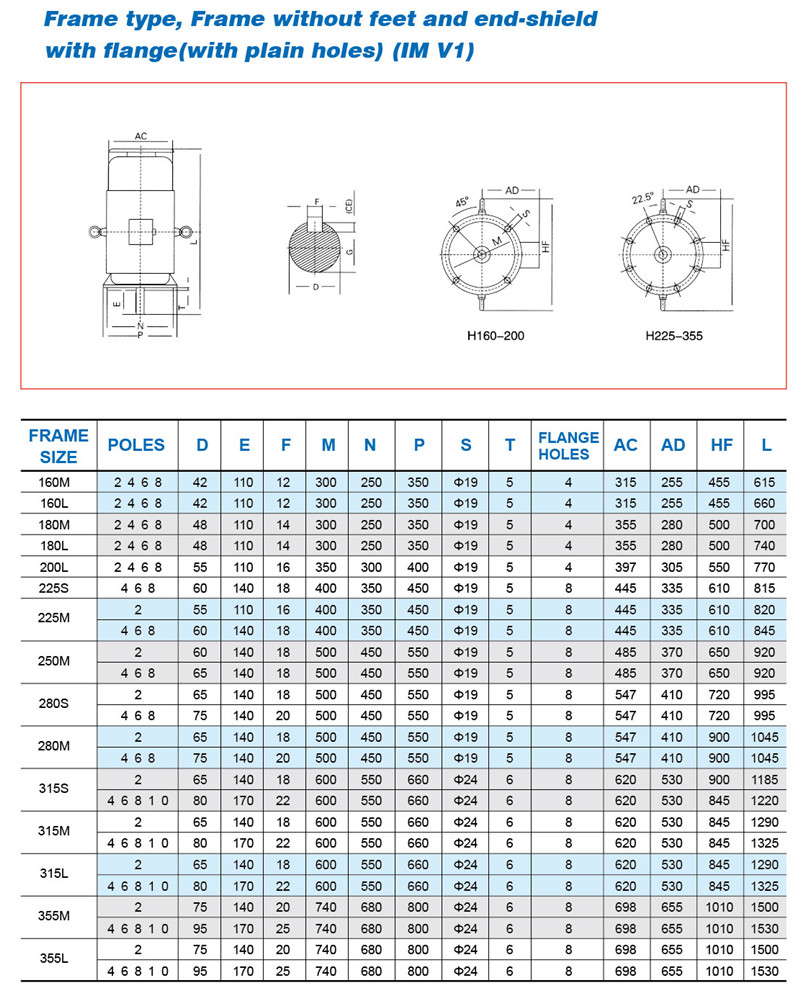

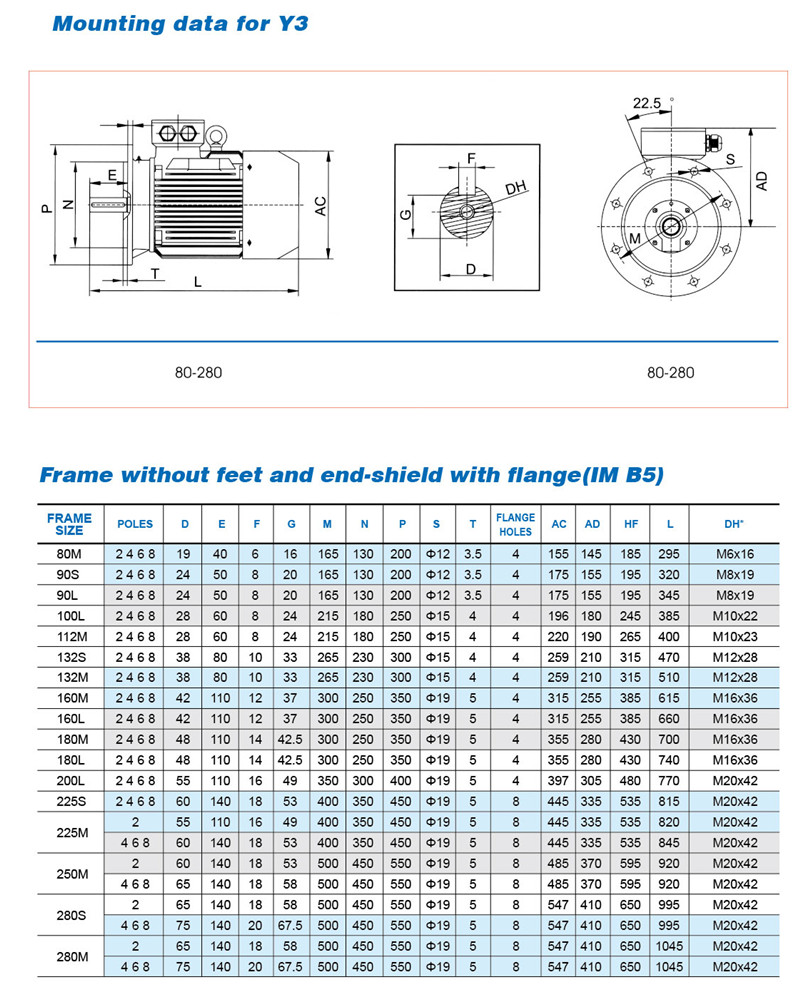

Y3 OVERALL & INSTALLATION DIMEENSION(MM)

size-1
size-2
size-3
size-4
size-5
size-6

Production View

img-1
img-2
img-3
img-4
img-5
img-6

Brand

OEM brands are still an option, even though choosing our brand will give you access to more assistance and a more affordable pricing.

MOQ and sample

50 parts at the very least per model.
Provide a free test sample.

Customized item

Accept your special requests, individual orders, or adhere to your sample specifications.

Delivery time

Ordinarily, the order will be finished in around 30 days after the advance fee is received.

Payment term

(1)T/T term:20% advance payment, 80% remainder due with a copy of the bill of lading
(2)L/C term: prefer L/C at sight ,consider for longer
(3)D/P term:20% advance deposit, 80% balance via D/P at sight
(4) Credit insurance: 20% down payment, 80% OA 60 days after insurance company reports

Warranty

To track the warranty duration and follow the after-sale service, mark the nameplate with Serial No.
one year from the shipment departure date.
Offer accessories always
