JET Series Self Priming Type Water Pump

Short Description:

These series self priming pump equipped with same venturi system each. They are suitable to convey clean water and non-aggressive chemical fluids, even with liquid mixed with gas, from well in continous duty; they are also indicated to increase water pressure in centralized water systems,for small irrigation systems, for watering gardens, for washing systems with water jets, for fountains, etc. It is normally advisable to install a foot valve on the suction branch.


Product Detail

Product Tags

Product Description

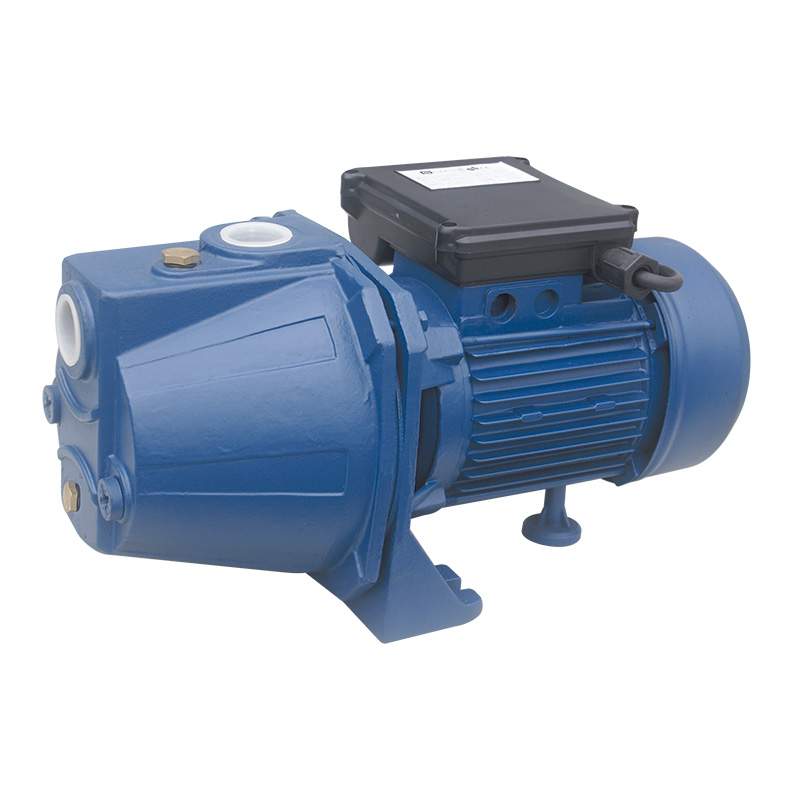

JET-S

JET-S

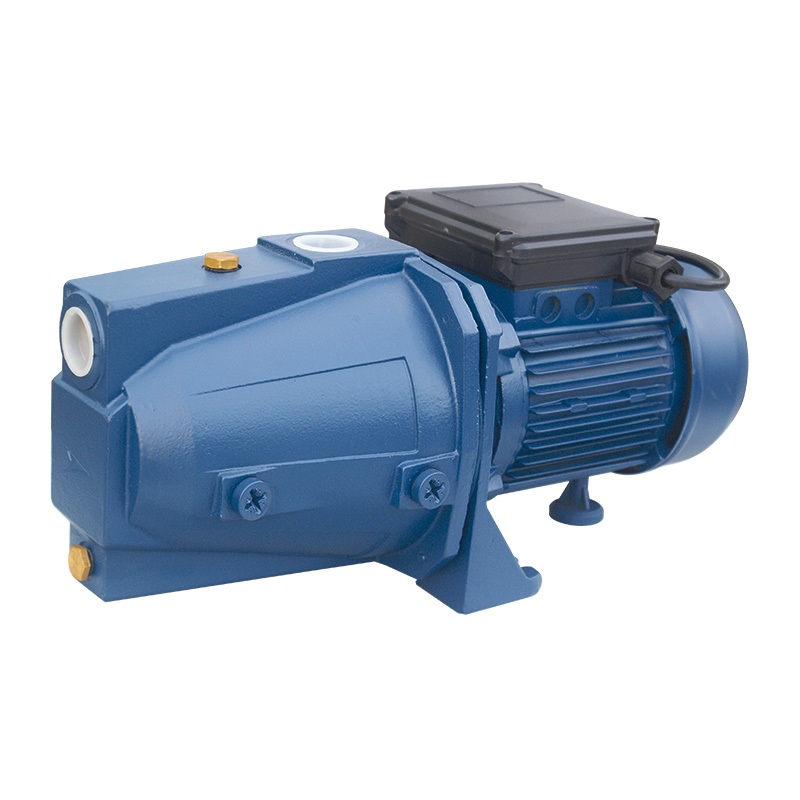

JET-M

JET-M

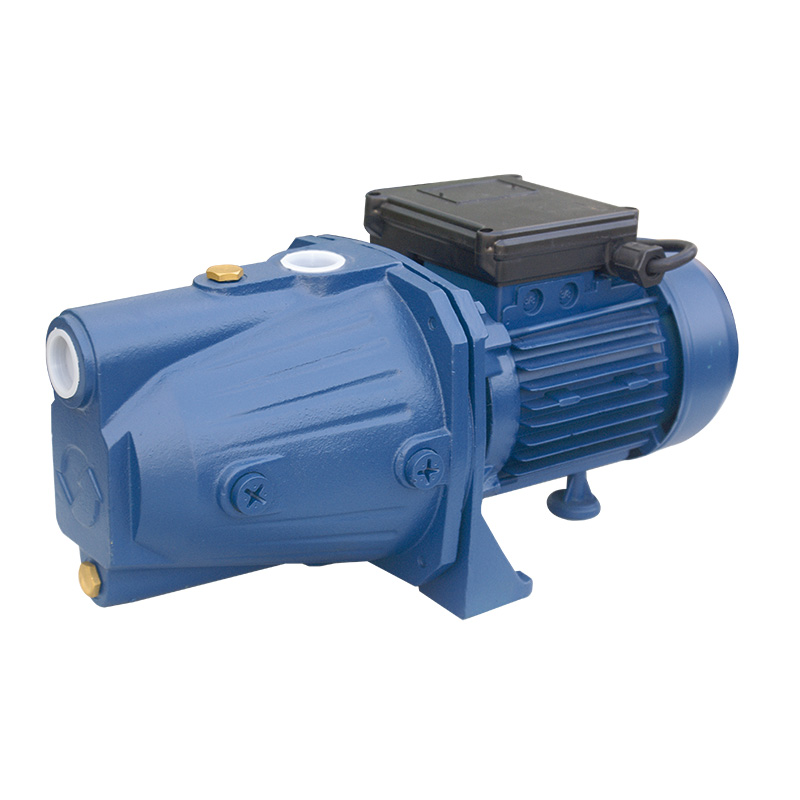

JET-L

JET-L

Application

Clean water and fluids that are not chemically harmful to the pump's components can be pumped using these pumps.
They are especially well suited for home applications like as medium-sized surge tanks, watering gardens, etc. because they are very dependable, inexpensive, and simple to use.
These pumps ought to be set up in a covered area that is shielded from the elements.
A foot valve or non-return valve should always be installed on the suction hole, just in case.

Working conditions

Max temperature of Fluid up to +60℃
Max Ambient Temperature up to 40℃
Suction lift up to 8m

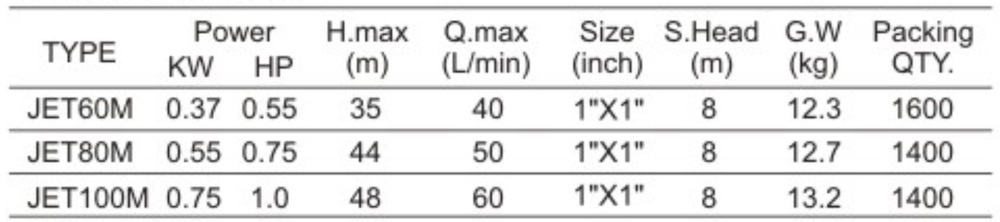

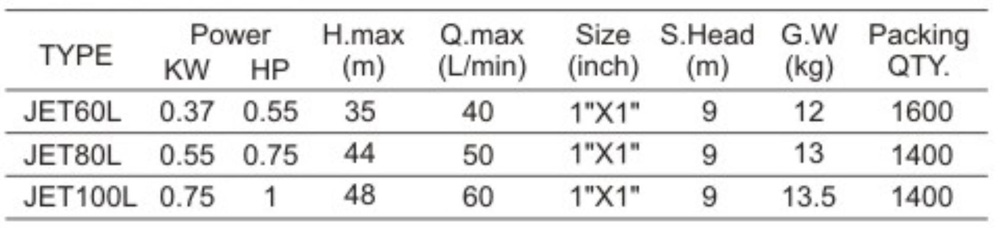

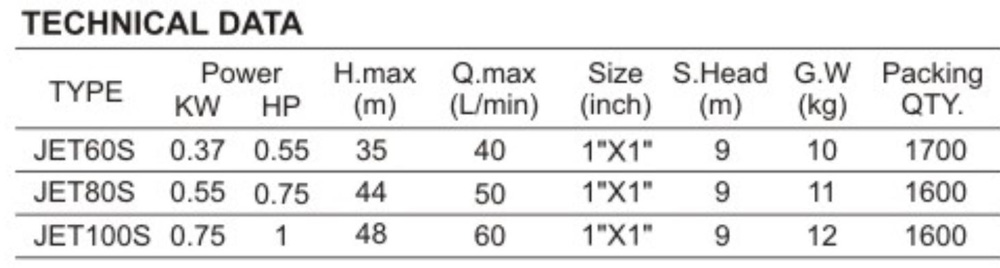

Technical data

ta1
ta2
ta3

Technical Description

main2

1. motor

100% full copper winding coil motor, machine wiring,new material stator,good temperature rise,stable performance
(aluminum wire motor for your choice available,stator length made as you require by different head and flow)

p2

2. Impeller

Brass material is standard configuration
Stainless steel material could be made
Aluminum material could be made
Plastic material could be made

p3

3. Rotor and shaft

Surface moisture proof ,anti rust treatment
Carbon steel shaft or 304 stainless steel shaft

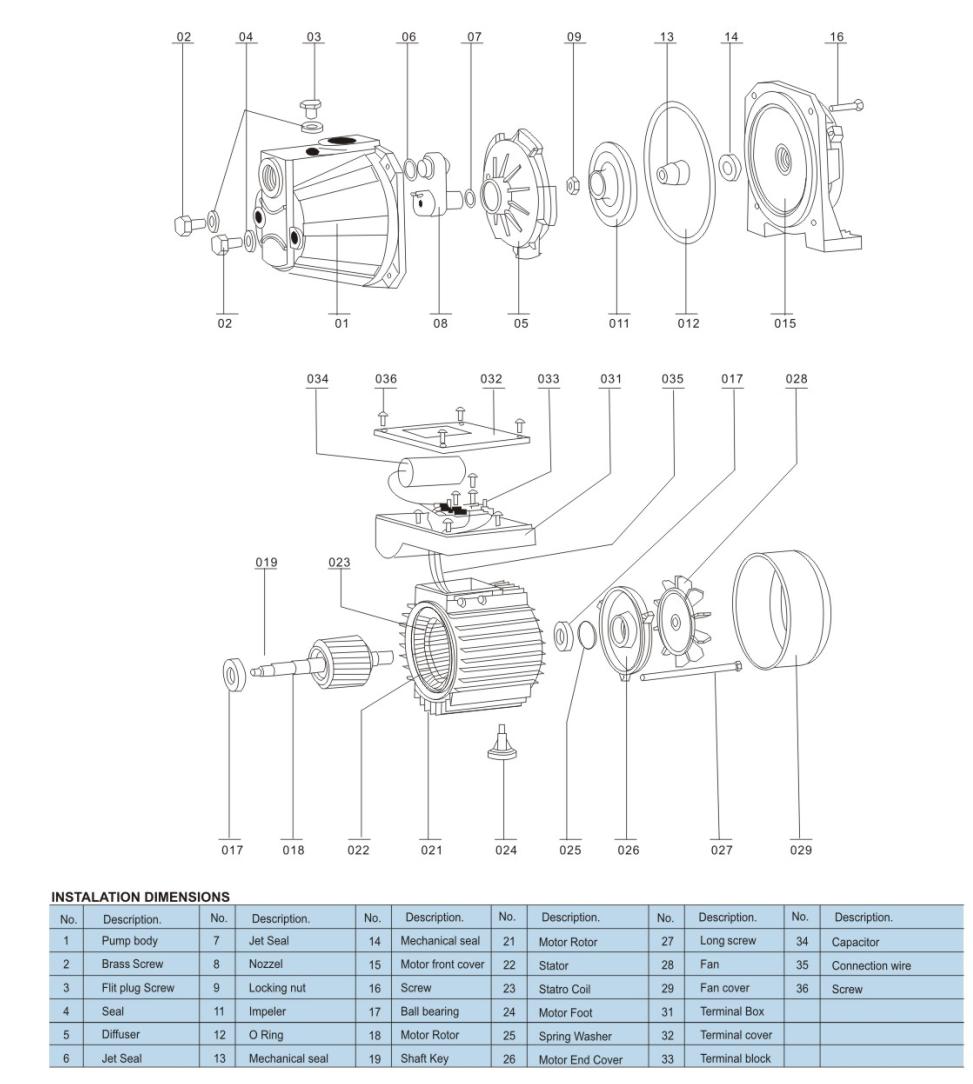

Exploded View

p1

Production line

P1
P2
P3
P5
P6
P4

Quality control

follow the ISO 9001 quality management system. From conception to testing to approval prior to acceptance, from a sample to a batch purchase The materials from our vendors are inspected before entering our warehouse. to create a quality control plan and operation instructions. It was discovered by test equipment during production, and a second spot check was performed before to distribution.

Installation instruction

The area where the pumps are located needs to be well-ventilated and dry, with an ambient temperature of no more than 40°C (Fig.A). Secure the pump with the correct bolts on a solid, flat surface to prevent vibration. The pump must be positioned horizontally in order for the bearings to operate properly. The diameter of the intake pipe cannot be smaller than that of the intake motor. If the intake height is greater than 4 meters, use a pipe with a larger diameter. The diameter of the deliverypipe must be chosen to correspond to the flow rate and pressure required at the takeoff points. The intake pipe must be slightly angled up toward the intake mouth in order to prevent the formation of air locks (Fig.B). Make sure the intake pipe is sealed and completely immersed.

Packing

Carton box as standard packing item,could be full color design.
Wooden box as another choice, much stronger, better protection.

Transportation

Priority loading in the ports of Ningbo, Shanghai, and Yiwu.Ningbo port is more convenient for us.
Full container of bulk goods

Samples

Discuss to offer free sample, some may be charged first,if you place a formal order, consider a charge refund.
Could check sample shipment by land, sea, or even air as you like.

Payment term

T/T term: 20% deposit in advance, 80% balance against copy of bill of lading
L/C term: prefer L/C at sight
D/P term, 20% deposit in advance, 80% balance of D/P at sight
Credit insurance: 20% advance deposit first, 80% balance OA 60 days by confirmation from the insurance company.

Warranty

To make Serial No. on the nameplate to follow the after sale service ,and track the warranty period,focus on the feedback of customer
13 months from the date of bill of lading as warranty period. According to the relevant vulnerable parts and components, if there is a manufacturing quality problem belonging to Supplier during the warranty period, Supplier shall be responsible for providing or replacing the repair parts after the joint identification and confirmation of both parties. The quotation of conventional products does not include any proportion of accessories. During the warranty period, according to the actual feedback, we will negotiate to provide vulnerable parts for maintenance, and some parts may need to be purchased with compensation. Any quality problems can be reported for research and negotiation.
